How to Fix Windows Update Error 0x80070643 on Windows 10?

Isabella Shinn
Isabella Shinn

Updated:

Error 0x80070643 has troubled many Windows 10 users since Microsoft released KB5034441: Windows Recovery Environment Update for Windows 10. Many have reported that they were unable to install KB5034441 and encountered 0x80070643 - ERROR_INSTALL_FAILURE. No worries, in this article we will discuss how to fix error 0x80070643. Let's get started!

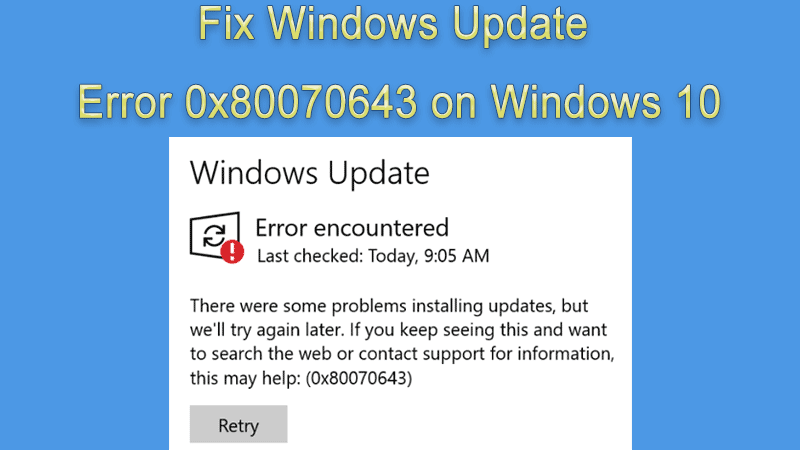

how to fix windows update error 0x80070643 on windows 10


Part 1: What’s the Reason Causing Windows Update Error 0x80070643?

The main reason that causes error code 0x80070643 is that the WinRE recovery partition space is insufficient. So, the method given by Microsoft is to manually resize the WinRE recovery partition (we will introduce this method in Part 3 Option 3&4). Apart from resizing the WinRE recovery partition, we will also introduce some common ways to fix Windows Update errors. And if you don't have a recovery partition, you don't need to update to KB5034441.

Part 2: How to Back up a Partition or a Hard Drive without Data Loss?

Since repartitioning the hard disk is risky, it's better to back up your hard disk in case of data loss. Here are the steps to backup a partition or hard disk using iSumsoft Cloner.

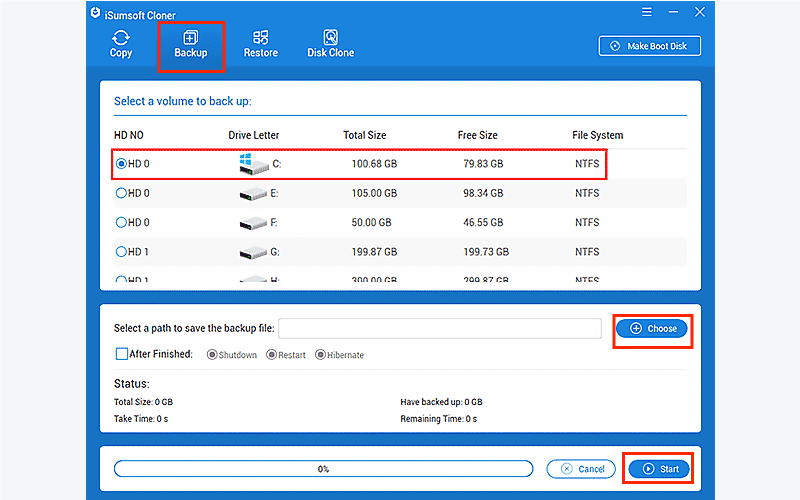

Step 1: Download and install iSumsoft Cloner.

Step 2: Select the "Backup" tab.

Step 3: In the "Select a volume to back up" rectangle, select a drive you want to back up.

Step 4: Click "Choose" to select a path to save the backup file. Then click "Start".

What you need to do is wait for the process to finish, then open the backup folder to check if you have successfully backed up your data.

backup a partition or hard drive using cloner

Part 3: How to Fix Windows Update Install Error 0x80070643 on Windows 10?

In this part, we will not only figure out common ways to fix Windows update errors but also talk about some official and useful ways easily to fix this error code 0x80070643.

Option 1: Common Ways to Fix Windows Update Error Codes

We have listed some common ways to fix most Windows update error codes below.


Way 1: Run Windows Update Troubleshooter

Steps: Open Settings > Update & Security > Troubleshoot > Additional troubleshooters > Windows Update > Run the troubleshooter.


Way 2: Enable Windows Update Services

Step 1: Type "services" in the search bar and hit the Enter button, then find the following update-related services.

• Windows Update

• Cryptographic Services

• Background Intelligent Transfer Service

• Windows Installer

Step 2: Right-click them and click "Start" to enable these windows update services.


Way 3: Run DISM and SFC Tools

Step 1: Type "PowerShell" in the search bar and click "Run as Administrators".

Step 2: Type the following commands and hit the Enter button after each command.

dism.exe /online /Cleanup-image /Restorehealth

sfc /scannow

Running the DISM tool can repair Windows images and the SFC tool can repair corrupt system files, if the above common ways cannot fix the Windows update install error 0x80070643, you can try the following methods.

Option 2: Fix Error 0x80070643 using PowerShell Script

Microsoft has developed a PowerShell script about automatically updating WinRE, here are the steps to use this PowerShell script to fix error code 0x80070643.

Step 1: Visit the sample PowerShell script page.

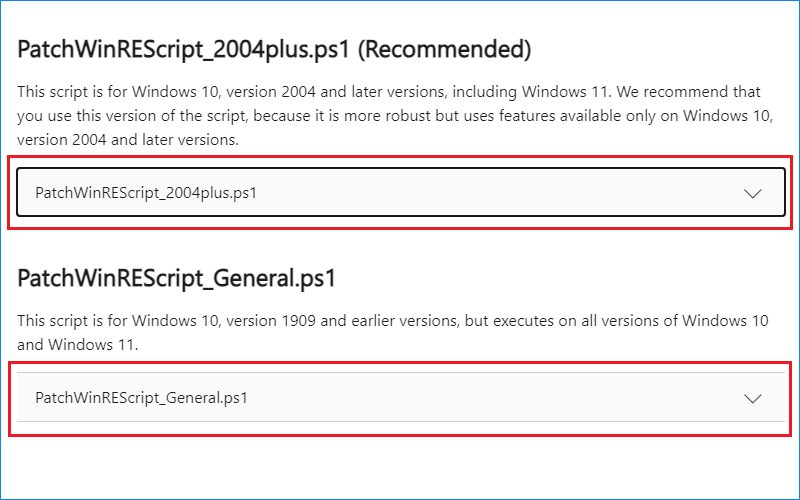

Step 2: Find and copy one of these two scripts according to your situation.

patchwinrescript

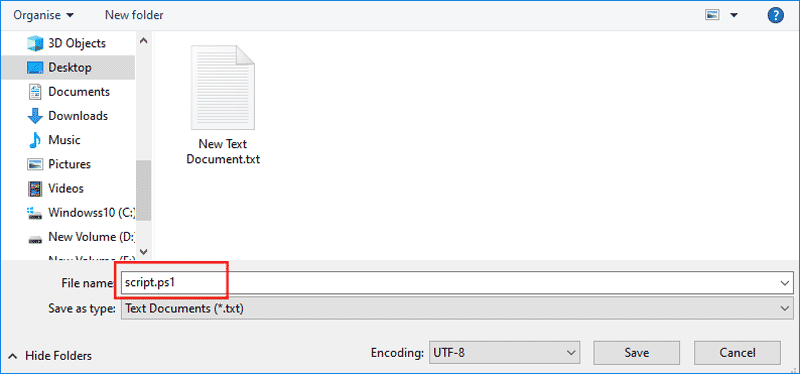

Step 3: Create a new text document, paste the script on it, and rename the document with the “.ps1” extension.

fix error 0x80070643 using powershell script

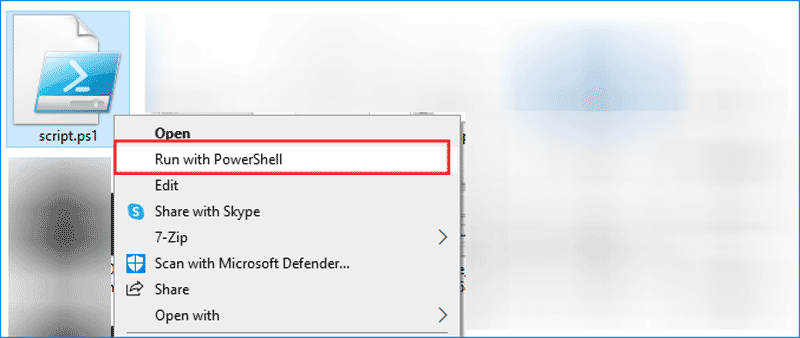

Step 4: Right-click the document and click “Run with Powershell”. Then wait for the script to finish and see if the Windows update error code 0x80070643 has been fixed.

run winre auto update script with powershell

Option 3: Resize the WinRE Partition Using Command Prompt

Microsoft has provided the official way to fix error 0x80070643 - ERROR_INSTALL_FAILURE is to manually resize the WinRE recovery partition. Here are the steps:

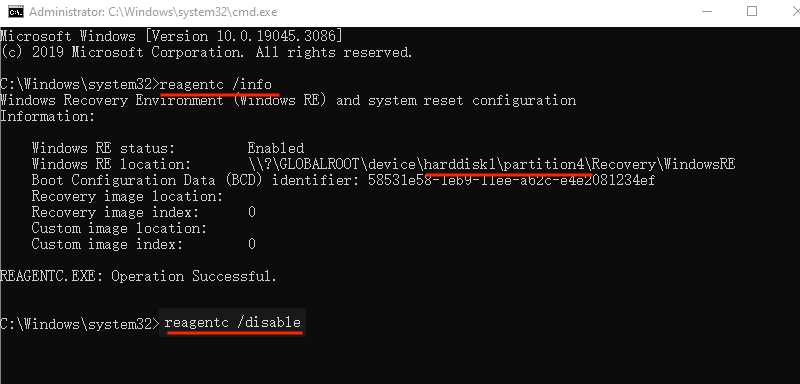

Step 1: Type "cmd" in the search and run as administrator, then type the following commands and tap the Enter button after each command:

reagentc /info (The number behind the disk and partition is the index of the disk and partition where WinRE is installed, mine is harddisk1, partition4.)

reagentc /disable (Disable WinRE)

check winre status

Step 2: Type the following commands in turn to shrink the OS partition:

diskpart

list disk

sel disk (OS disk index) (The index depends on the OS disk index, please refer to your own situation, mine is harddisk1, so the command is sel disk 1, if you are harddisk0, just type sel disk 0)

list part

sel part (OS partition index) (Check the partition type of Primary, mine is sel part 3)

shrink desired=250 minimum=250

sel part (WinRE partition index) (In the sel part command, you can check that the Recovery partition index, mine is sel part 4)

delete partition override

shrink the os partition and prepare the disk

When you have finished the above commands, you have successfully shrunk the OS partition. Now, you should create a new recovery partition with the following commands.

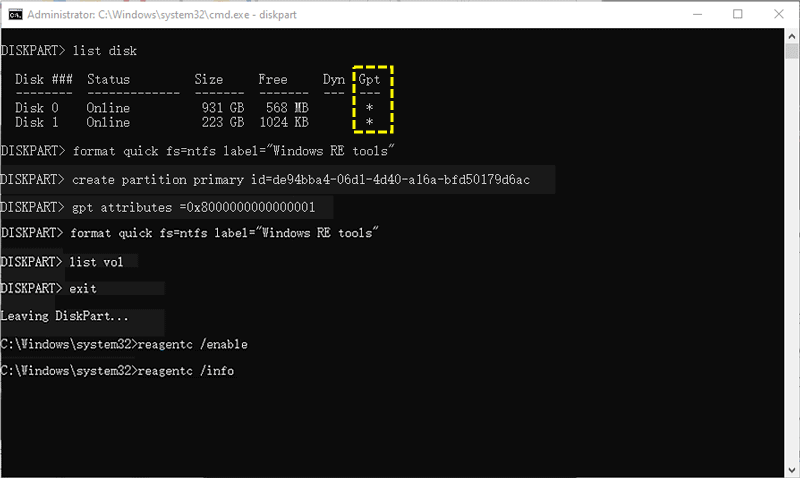

list disk (Check your disk partition style)

Note:

  • If the "*" is under GPT, run the following commands:
  • create partition primary id=de94bba4-06d1-4d40-a16a-bfd50179d6ac
  • gpt attributes =0x8000000000000001
  • If the "*" isn’t under GPT, you should run: create partition primary id=27

format quick fs=ntfs label=”Windows RE tools”

list vol(Check your disk partition style)

exit

reagentc /enable

reagentc /info

create a new recovery partition

After that, you have resized the WinRE recovery partition, and run the KB5034441 update again to check if the error 0x80070643 has been repaired.

Option 4: Resize the WinRE Partition Using DiskGenius

You can also use the disk tool to resize the WinRE partition. It would be more understandable to operate. Here are the steps to use DiskGenius to fix Windows update 0x80070643.

Step 1: Open Disk Management and right-click the C drive.

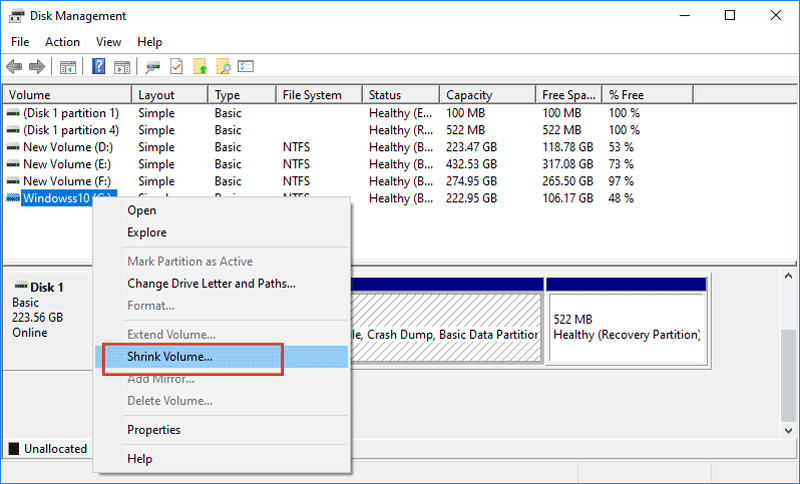

Step 2: Select Shrink Volume.

shrink volume

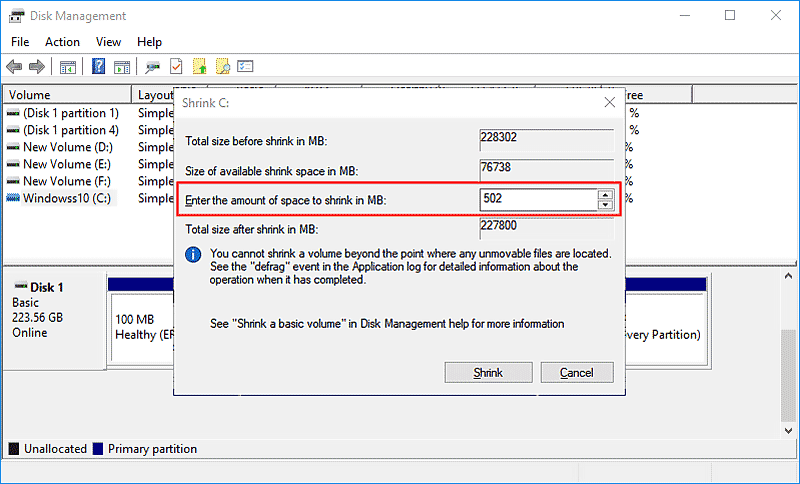

Step 3: Enter the amount of space to shrink. (This depends on how much size you want. It is recommended to extend to more than 1000MB.)

shrink c drive

Step 4: Download and install the DiskGenius .

Step 5: Right-click Partition in the left panel.

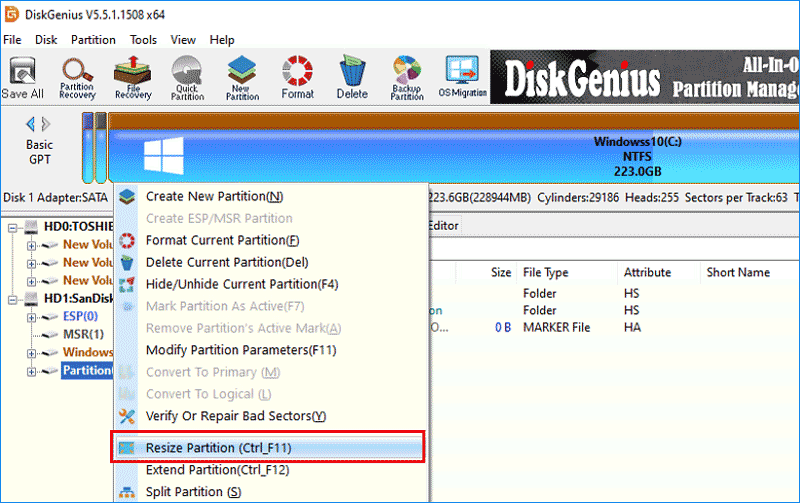

Step 6: Select Resize Partition.

resize partition using diskgenius

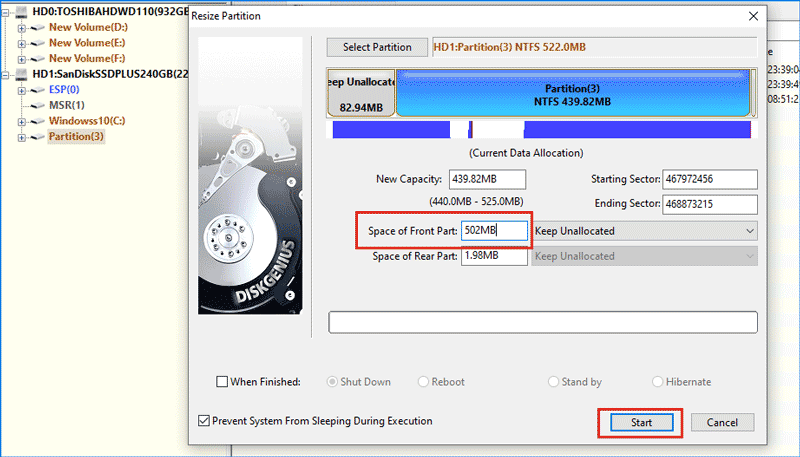

Step 7: Fill in the space you shrunk in the Space of Front Part blank, then click Start.

extend winre recovery partition via diskgenius

Step 8: Open Disk Management to check if the recovery partition has been extended.

After that, install Windows update KB5034441 to confirm if the install error code 0x80070643 comes out again.
