Ways to Open or Bypass TPM 2.0

Windows 11 offical requires TPM (Trusted Platform Module) 2.0, and it is one of the lowest hardware requirements for install and run Windows 11. If your computer does not have TPM 2.0 available, then how to open it? This post will provide serval ways to open or bypass TPM 2.0 (suitable for ASUA, GIGABYTE, MSI, ASROCK mainboard), if you have any problems on this field, follow this post and take a look!

• Part 1. Introduction
• Part 2. How to check whether the TPM module is turn on or not
• Part 3. Enable TPM 2.0 module for different motherboard
• Ⅰ. Turn on TPM 2.0 on Intel platform
• 1. ASUA Mainboard on intel platform
• 2. GIGABYTE Mainboard on intel platform
• 3. MSI Mainboard on intel platform
• 4. ASROCK Mainboard on intel platform
• Ⅱ. Turn on TPM 2.0 on AMD platform
• 1. ASUA Mainboard on AMD platform
• 2. GIGABYTE Mainboard on AMD platform
• 3. MSI Mainboard on AMD platform
• 4. ASROCK Mainboard on AMD platform
• Part 4. How to bypass TPM 2.0 detection
• Part 5. Conclusion

1. Introduction

Compare with Windows 10, the system offical requirements of Windows 11 are more tough, not only need the support of specific professor, but also need the support of UEFI secure boot and TPM version 2.0 modules. Lots of users are preparing to install the Windows 11, but after check the state of their computer, they found that TPM 2.0 is unavailable and have no idea about how to turn on it. So how to enable TPM 2.0? Below, this post will share some methods of turning on TPM 2.0 or bypass it (suitable for ASUS, GIGABYTE, MSI, and ASRock motherboards).

2. How to check whether the TPM module is ready or not?

Firstly, open the “Run” by press “WIN” + “R”, type “tpm.msc” and enter.

If we see screen like the TPM is ready for use, and the specification version is 2.0, it means nothing wrong with your TPM module.

If system hint an error message “Compatible Trusted Platform Module (TPM) cannot be found on this computer”, it means the TPM 2.0 is disable on your computer and you may need to open it in BIOS.

3. Enable TPM 2.0 module for different motherboard

As motherboard brands of different, enter BIOS interface also vary, so the way to enable TPM 2.0 also vary, even different from Intel or AMD platform, next we will provide different ways to enable TPM 2.0 module for different mainboards as follow.

Ⅰ.Turn on TPM 2.0 on Intel platform

1. ASUA Mainboard on Intel platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. Find and click to enter "Advanced Mode", or press the F7 key directly to enter the advanced mode. Under the "Advanced" tab, enter "PCH-FW Configuration", set "TPM device selection" to "Enable Firmware TPM", click "OK", and remember to press the F10 key to save and exit BIOS.

2. GIGABYTE Mainboard on Intel platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. Under the "Settings" tab, enter "Miscellaneous" and set "Intel Platform Trust Technology (PTT)" to "Enabled". And remember to press the F10 key to save and exit BIOS.

3. MSI Mainboard on Intel platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. click "Advanced" or press the F7 key directly, find the "Security" tab, and then enter "Trusted Computing", set "Security Device Support" to "Enabled". And remember to press the F10 key to save and exit BIOS.

4. ASROCK Mainboard on Intel platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. Click "Advanced Mode" or press the F6 key directly. Find the "Security" tab and set "Intel Platform Trust Technology (PTT)" to "Enabled". And remember to press the F10 key to save and exit BIOS.

Ⅱ.Turn on TPM 2.0 on AMD platform

1. ASUA Mainboard on AMD platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. click to enter "Advanced Mode", or press the F7 key directly to enter the advanced mode, find the "Advanced" tab, enter "AMD fTPM configuration", set "Selects TPM device" to "Enable Firmware TPM", click "OK". And remember to press the F10 key to save and exit BIOS.

2. GIGABYTE Mainboard on AMD platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. Find and enter the "Settings" tab, enter "Miscellaneous", and set "AMD fTPM switch" to "Enabled". And remember to press the F10 key to save and exit BIOS.

3. MSI Mainboard on AMD platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. click "Advanced" or directly press the F7 key, enter "Settings", enter "Security", and then enter "Trusted Computing", set "Security Device Support" to "Enabled". And remember to press the F10 key to save and exit BIOS.

4. ASROCK Mainboard on AMD platform

First, restart the computer. Since it just starts, repeatedly press the Del key on the keyboard to enter the BIOS of the motherboard. Click to enter the "Advanced" tab, enter "CPU Configuration", set "AMD fTPM switch" to "Enabled". And remember to press the F10 key to save and exit BIOS.

4. How to bypass TPM 2.0 detection when upgrade Windows 11

We provide 3 ways to bypass TPM 2.0 detection for upgrade Windows 11, you can click here to know more details about three simple and effective ways to upgrade Windows 10 to Windows 11 without TPM 2.0

5. Conclusion

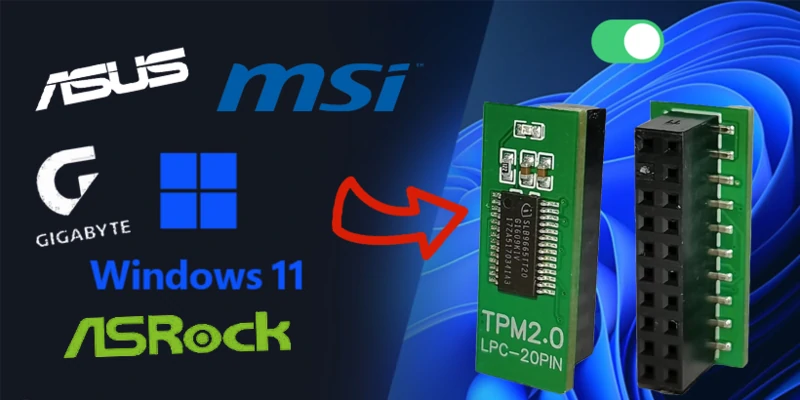

Above all of the methods are the way to enable or bypass TPM 2.0, suitable for ASUS, GIGABYTE, MSI, and ASRock motherboards. If you also want to install Windows 11 and find the TPM 2.0 is disable, why not try one of those methods above and enable the TPM 2.0 for your computer. Ofcouse, if your mainboard is unsupported for TPM 2.0 or your TPM version too low, we suggest you buy a TPM 2.0 module if your motherboard support TPM interface. Hope this article can do something for your problems!
