[Windows 11] How to Create a System Image

Ralph Adolphs
Ralph Adolphs

Updated:

Creating a system image in Windows 11 can be a good idea if you tend to have a backup of your entire system, including your operating system, programs, personalized settings, and personal files. This can be helpful amid a system failure, malware infection, or other issues that may require you to restore your system to a previous state. Now, let's start learning to create a system image!

Windows 11-How to Create a System Image


Method 1: Create a system image in Windows 11 with WBAdmin

WBAdmin is a command-line tool in Windows that allows you to manage backups and recovery options. With it, you can perform a variety of backup and recovery tasks, such as creating backups of files, folders, volumes, and system state; restoring backups; listing available backup versions; etc.

Step 1: Right-click on the Start icon and select Windows Terminal (Admin).

click-start-and-select-windows-management

Step 2: Click Yes to allow the program to make changes to your device, then you will access Windows PowerShell.

click-yes-to-allow-to-make-change

Step 3: Type wbadmin start backup -backuptarget:E: -include:C: -allcritical -quiet and hit Enter to create a system image of the C drive stored on the E disk. The backup status will be displayed on the panel.

wbadmin-command

Step 4: The program has successfully created a system image when it shows the following message.

wbadmin-successfully-back-up

Step 5: Open the E drive and you will see the WindowsImageBackup folder in its root directory.

wbadmin-in-d-drive

Method 2: Create a system image in Windows 11 with the professional software iSumsoft Cloner

iSumsoft Cloner, an excellent disk cloning software for Windows 11, is used to copy or clone Windows OS, data partitions, and even the entire hard drive. Not only does the software have a user-friendly interface design that makes it easy to back up the system efficiently, but it also has a high success rate.

download-cloner

Step 1: Download iSumsoft Cloner and launch it, then click Backup option in the home page.

select-backup-option

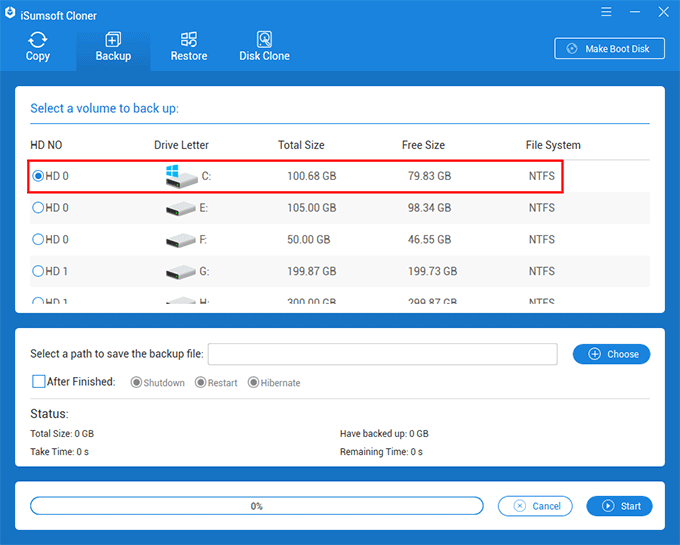

Step 2: Select the C drive (system drive) to back up.

select-volume-to-backup

Step 3: Click Choose button to select a path to store the backup file.

select-path-to-save-backup

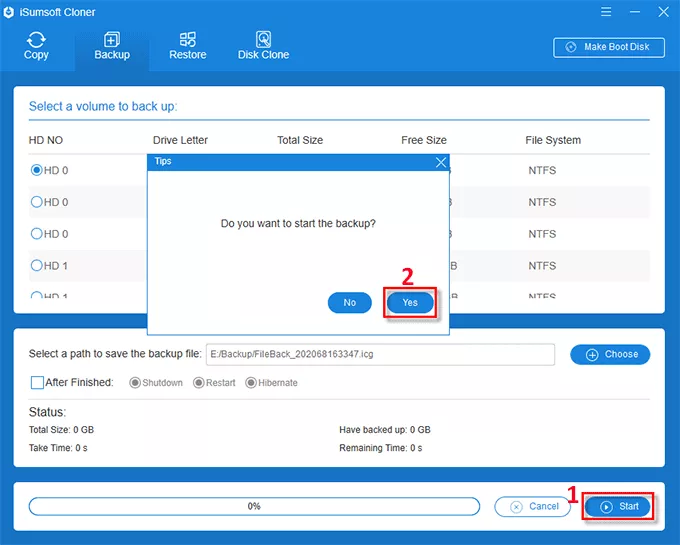

Step 4: Click Start button to begin backing up and select Yes to confirm your selection.

start-backup

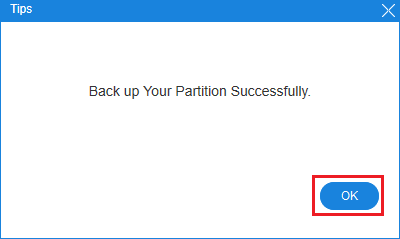

Step 5: Wait for the backup process to complete. Then click OK button when a Tips box appears. (This usually takes about 15 minutes to finish, depending on the size of the data being backed up.)

backup-completed

Method 3: Create a system image in Windows 11 with wimlib tool

Wimlib, an open-source library, is a powerful and flexible tool for working with Windows disk images. Whether you need to create custom Windows installations, modify existing images, or extract individual files and folders, it provides a robust set of features and options to help you get the job done.

Step 1: Download wimlib v1.13.5 Windows binaries (64-bit) and place it in the root directory of the D drive.

download-wimlib

Step 2: In D volume, right-click on the downloaded file and select Extract All » Extract sequentially.

extract-the-archive

Step 3: Rename the extracted file wimlib.

rename-wimlib

Step 4: Right-click on the Windows icon and then select Windows Terminal (Admin) from the options.

click-start-and-select-windows-management

Step 5: Enter Yes when a dialog box appears to launch Windows PowerShell.

click-yes-to-allow-to-make-change

Step 6: Type D:\wimlib\wimlib-imagex capture C:\ D:\win11bk.wim --check --snapshot, then press Enter. This command will back up the system drive, generating a portfolio named win11bk.wim in the D drive.

wimlib-command

Step 7: Completed successfully.

wimlib-successfully-back-up

Step 8: You can see that the file is on drive D.

wimlib-in-d-drive
