How to Install Windows 7 from a USB Drive in VMware

Lucas Watson
Lucas Watson

Updated:

In this article, we will show you how to install Windows 7 from a USB flash drive in VMware. Firstly, you have to ensure that your USB flash disk has unplugged and connected with the VMware. To do like this:

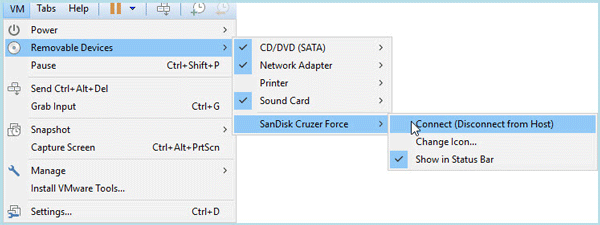

1. Tap on VM and choose Removable Devices in the result list.

2. Then select your hard disk, here we will select SanDisk Cruzer Force > Connect (Disconnect from Host).

Make your usb connect from vm tab

Steps to install Windows 7 from a USB drive in VMware:

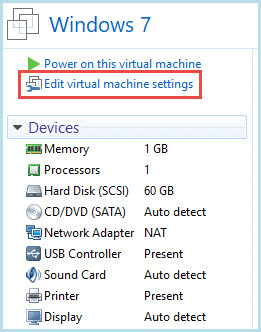

Step 1: Click on Edit virtual machine settings in the existing virtual machine.

Click edit virtual machine settings

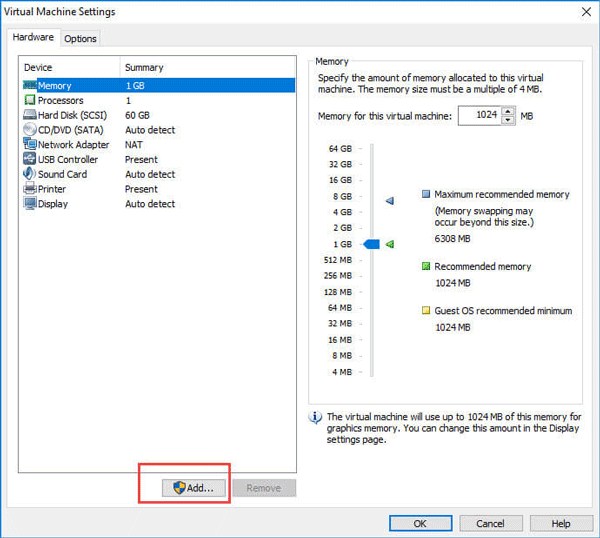

Step 2: Tap on Add.

Click add to select hardisk

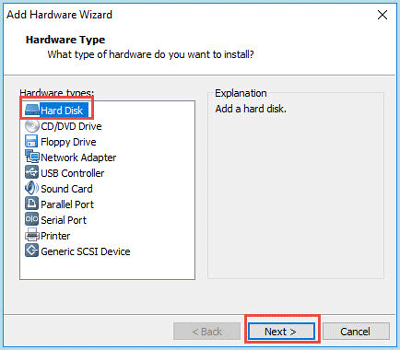

Step 3: Select Hard Disk as the hardware type, then Next.

Select hardware type to install

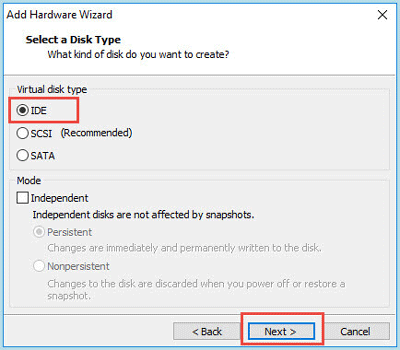

Step 4: Choose IDE as your disk type, and click on Next.

Select a disk type

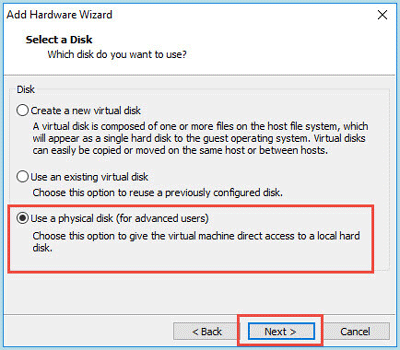

Step 5: Choose the Use a physical disk option, then Next.

Select to use a physical disk

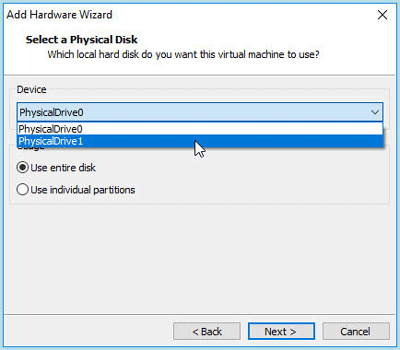

Step 6: Select PhysicalDrive 1, your USB flash disk is always the last one on the list. Then just click on Next and Finished.

Choose physical drive 1 as your usb

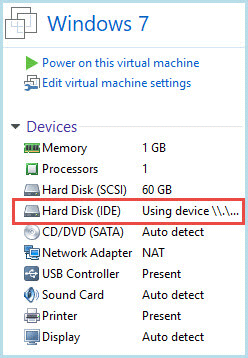

Step 7: Now, you can see the new hard disk on the list.

New hard disk in the list

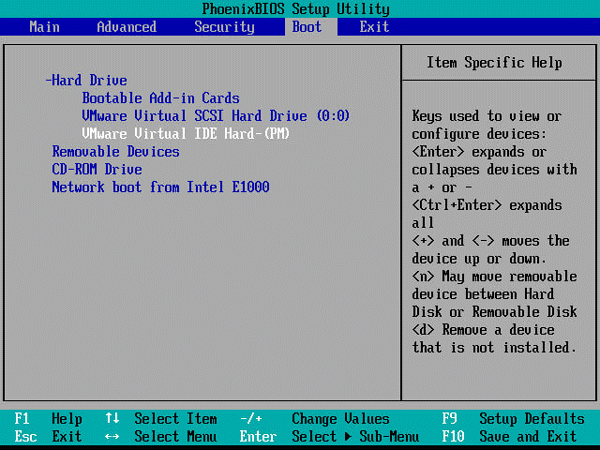

Step 8: Power on the machine, and press F2 to get into BIOS settings. Go to the Boot tab, use "+" key from the keyboard to make Hard Drive into the first drive to boot.

Choose hard drive then enter

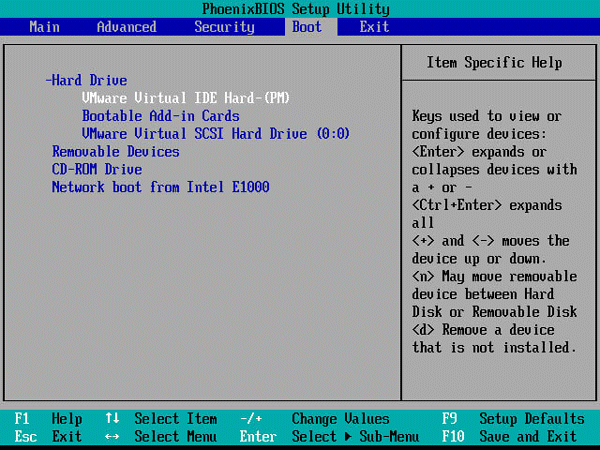

Step 9: Set your disk into the first place.

Made hard disk to first boot

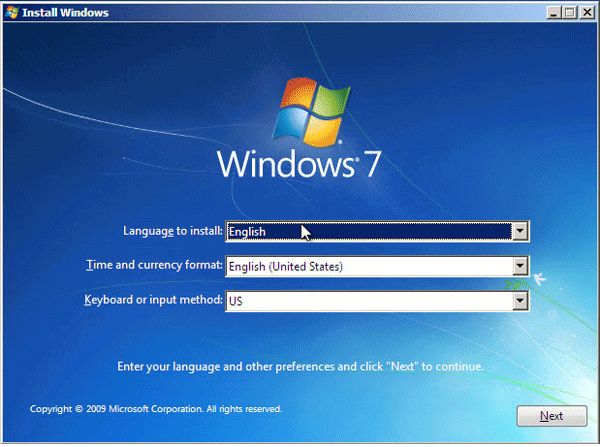

Step 10: Press F10 then Enter to save and exit. The Windows 7 should be installed well in the VMware.

Windows installing
