How to boot Windows from USB drive in VMware workstation 15

Lucas Watson
Lucas Watson

Updated:

Booting a computer from a USB flash drive is the technology of starting some backup, restore or PE operating system etc. Most computers support USB flash drive startup, which can play a great role when system crash and rapid system installation. Similarly, boot virtual machine from USB flash drive is also allowed. This article tells you how to boot Windows from USB drive in VMware Workstation 15.

Part 1. Add USB drive as a hard disk

To enable USB drive in the virtual machine, we need to add USB drive as hard disk firstly. Of course, we should insert the USB drive into the computer at the beginning.

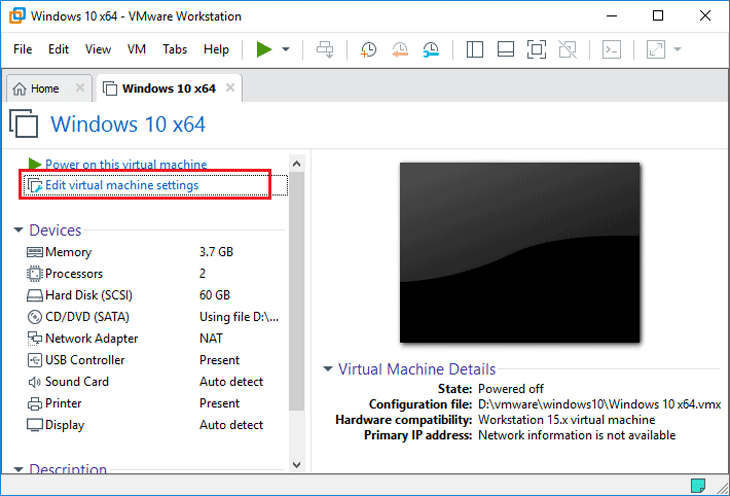

Step 1: After connecting the USB drive, run VMware Workstation, select the machine you want to boot from USB drive, and then click Edit virtual machine settings.

Edit virtual machine settings

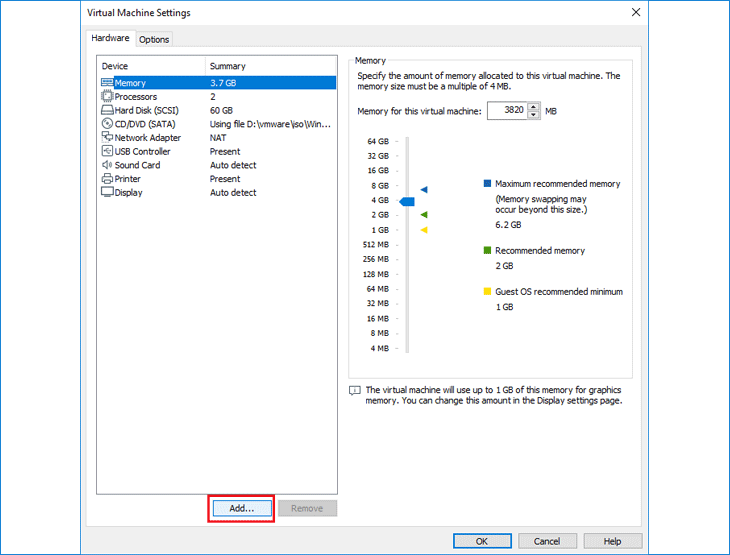

Step 2: Click Add.

Click Add

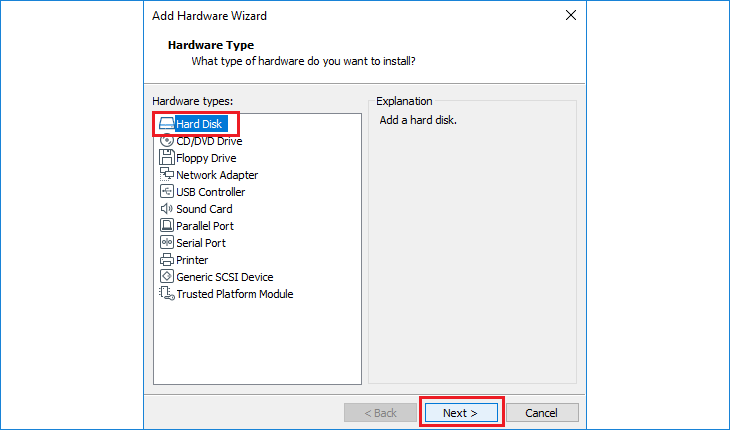

Step 3: Select Hard Disk and click Next.

select hard disk

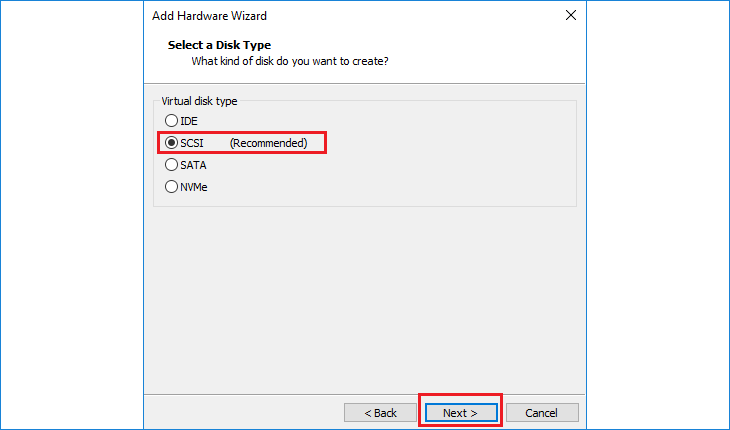

Step 3: Select a Disk Type, we select SCSI by default and click Next.

select SCSI

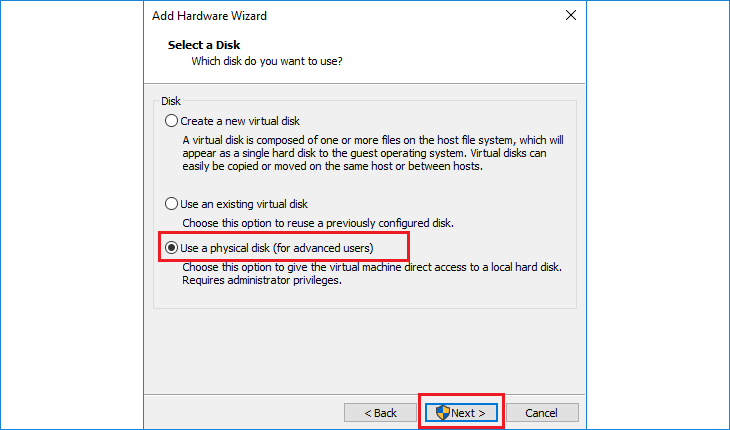

Step 4: Select Use a physical disk which can give the virtual machine direct access to the USB drive, and then click Next.

Use a physical disk

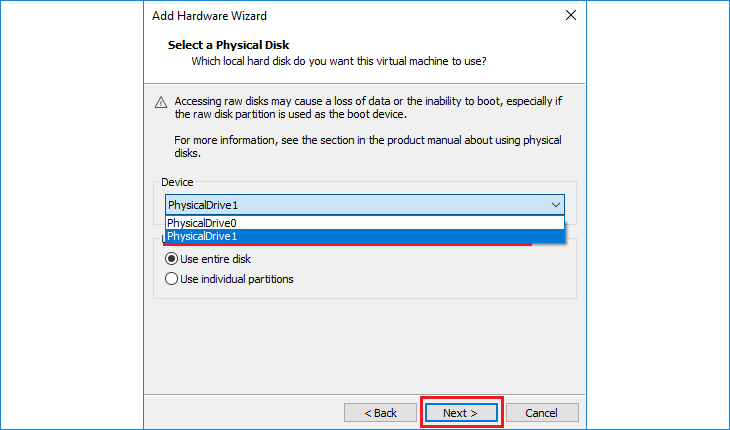

Step 5: Select a Physical Disk. Generally, there will be two drives to be choose. The first one is our local computer hard disk and the second one is our USB flash drive which should be selected. After that, select Use entire disk and click Next.

Select USB drive

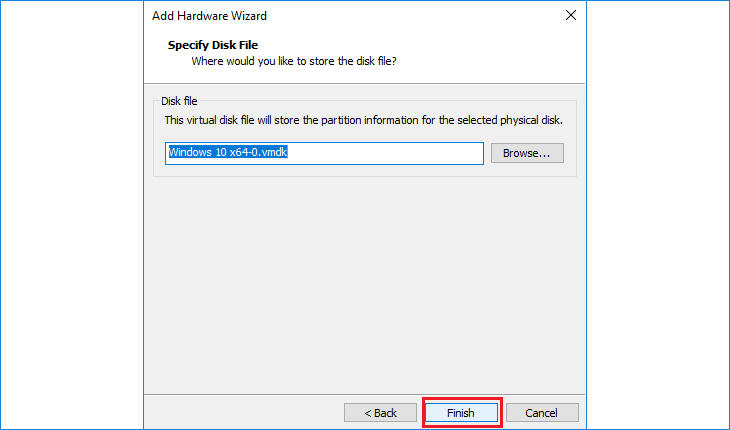

Step 6: Click Finish.

Finish

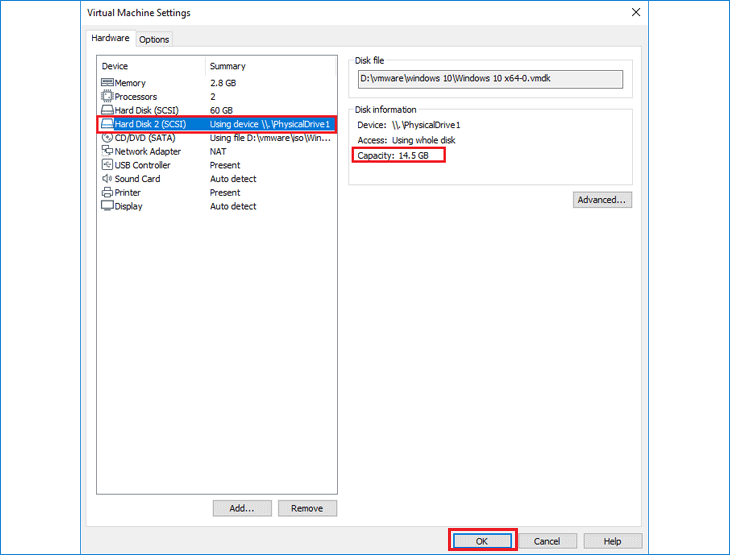

Step 7: Back to the main interface of Virtual Machine Settings, a new hard disk namely the USB drive can be seen, click OK to complete.

Tips: You can confirm whether it is your USB drive through the capacity.

new hard disk

Part 2. Set the virtual Windows machine to boot from the USB drive

The USB drive has been added. Next, we guide you to VMware workstation 15 boot from USB in two ways.

Way 1

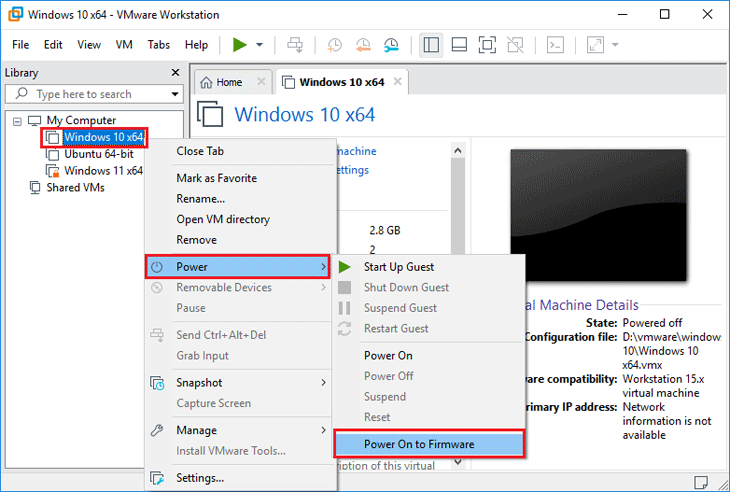

Step 1: In the main interface, right-click the virtual machine you want to boot from USB drive, hover Power, and then click Power on to Firmware namely to enter BIOS.

Power on to Firmware

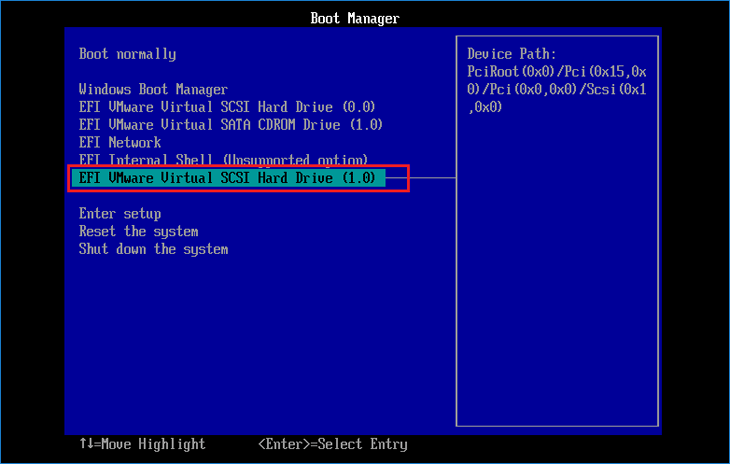

Step 2: On the Boot Menu, highlight the SCSI Hard Drive (1.0) namely the USB drive we just added by or key, hit Enter to confirm, and then the virtual machine will boot from the USB drive.

Boot Menu

Way 2

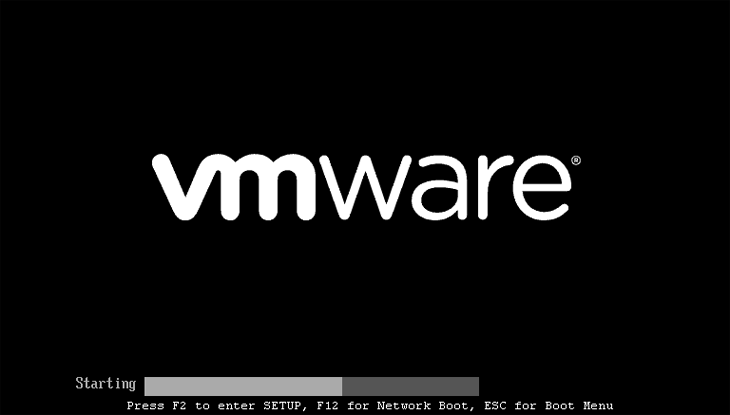

Step 1: Start or restart the virtual machine. When the VMware logo appears, press the Boot Menu key (ESC), and then Boot Menu will appear.

VMware logo

Step 2: On the Boot Menu, highlight the SCSI Hard Drive (1.0) namely the USB drive we just added by or key, hit Enter to confirm, and then the virtual machine will boot from the USB drive.

Boot Menu
