Solved SSD Not Showing Up in Windows 11

Ralph Adolphs
Ralph Adolphs

Updated:

Are you facing an issue where one of your hard drives, such as an SSD, is not showing up in File Explorer after upgrading to Windows 11? Have you recently added an SSD to your computer, but Windows 11 cannot detect the new drive? Regardless of the cause, this article will provide you with solutions to resolve the issue of an SSD not showing up in Windows 11.

ssd not showing up in windows 11

How to Fix SSD Not Showing Pp in Windows 11?

Solution 1: Initialize the newly added SSD

When you add a new SSD to your computer, it needs to be initialized before it can be used properly. Initializing a newly added SSD allows you to configure its partition structure, allocate storage space, and assign a file system that is compatible with your operating system. This process is necessary to ensure that the SSD is correctly recognized and accessible by your computer's operating system, such as Windows 11. Follow these steps:

Step 1: Right-click on the Win icon and select Disk Management.

launch disk management

Step 2: A dialogue box will pop up for initialization. Click GPT partition type and then click OK to confirm.

click gpt option

Step 3: Right-click on the new SSD and select New Volume Type. Then Follow the onscreen instructions to create a new volume on the disk, during which you can allocate its storage size and assign a drive letter to it.

right click on the ssd and select new simple volume

Step 4: Locate File Explorer and you will find the SSD is displayed on the screen.

Solution 2: Make sure the proper connection

Ensure that the SSD is properly connected to your computer. Check the cables, ports, and power supply to make sure everything is securely connected. Try connecting the SSD to a different SATA port or using a different cable to rule out connection issues.

Solution 3: Assign a drive letter to the SSD that is not showing up

Step 1: Right-click on the Start icon and select Disk Management.

launch disk management

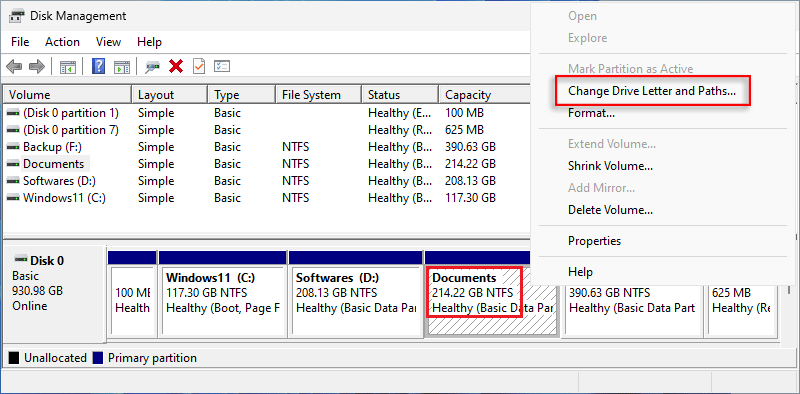

Step 2: From here, right-click on the SSD without a drive letter and select Change Drive Letter and Paths.

click change drive letter and paths

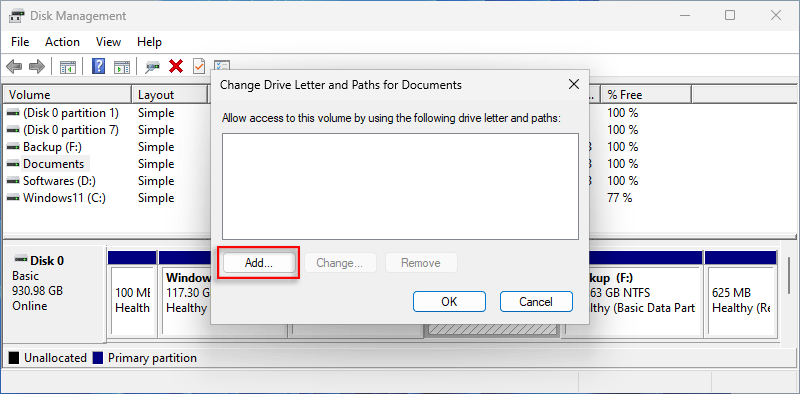

Step 3: Click Add.

click add

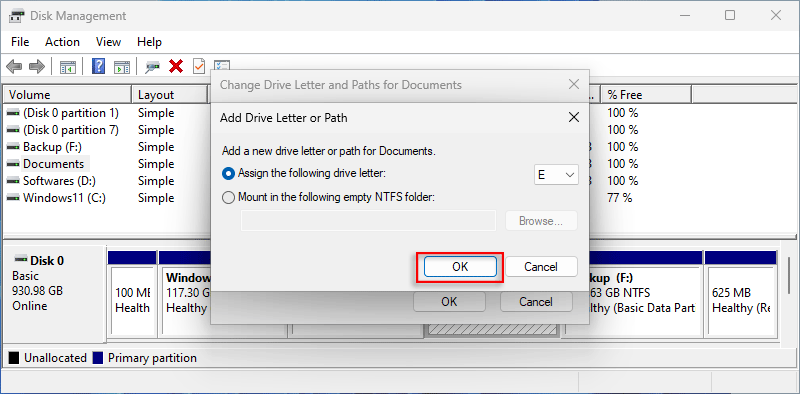

Step 4: The program will automatically assign a drive letter to the disappeared drive, or you can choose a letter you prefer. Click OK to proceed.

assign a letter and click ok

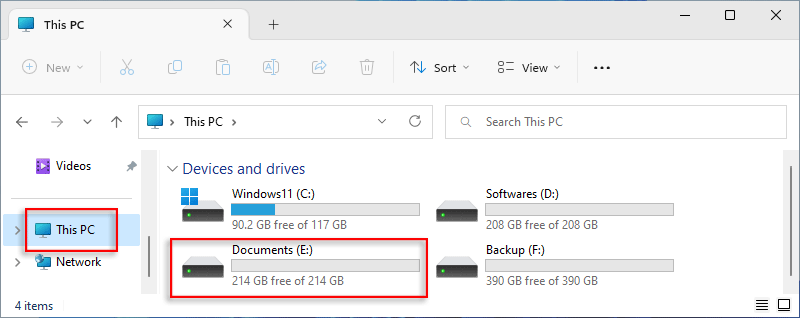

Step 5: Once complete, you can see the SSD with the letter E.

e drive is showing up

Solution 4: Fix SSD not showing up in Windows 11 with CMD

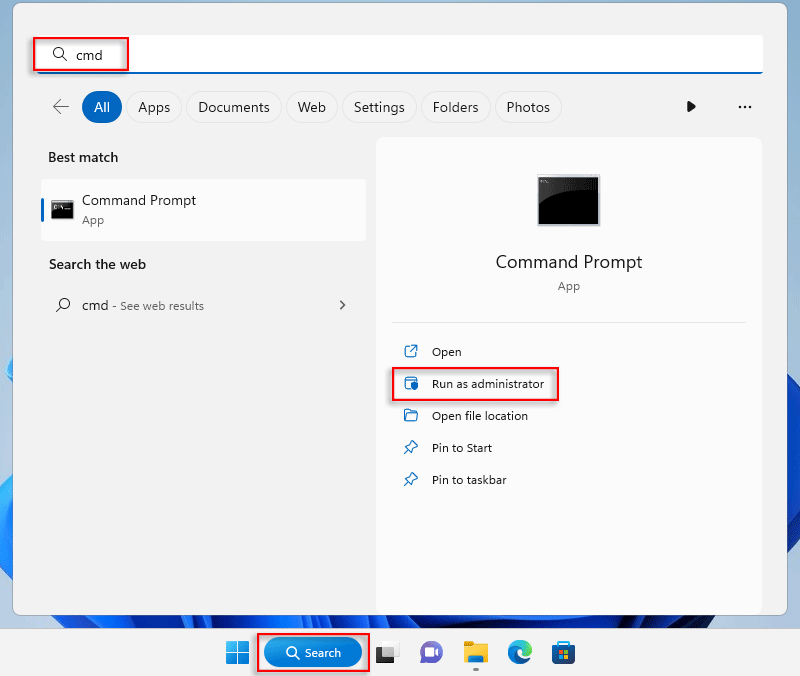

Step 1: Type cmd on the search bar and click Run as administrator.

run cmd as administrator

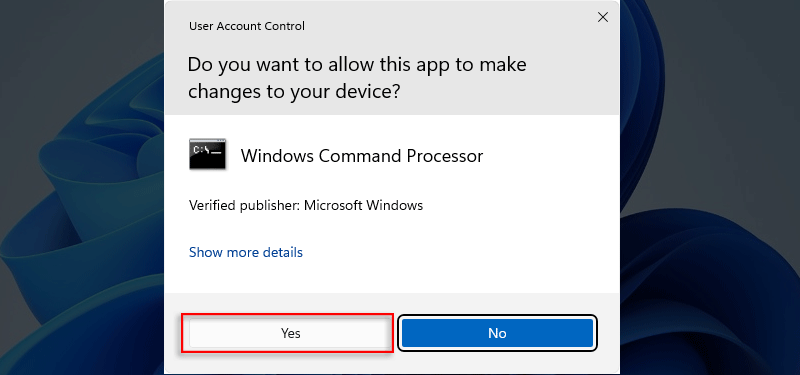

Step 2: Click Yes.

click yes

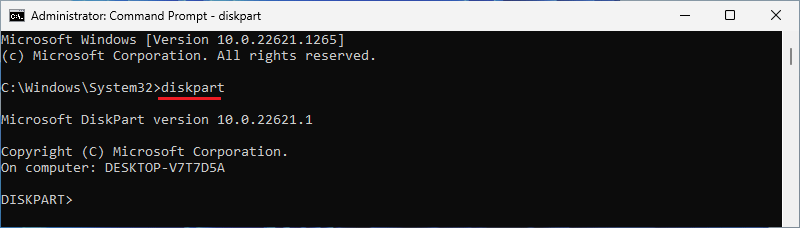

Step 3: On the command panel, type diskpart and press Enter, launching the DisKPart tool.

type diskpart and hit enter

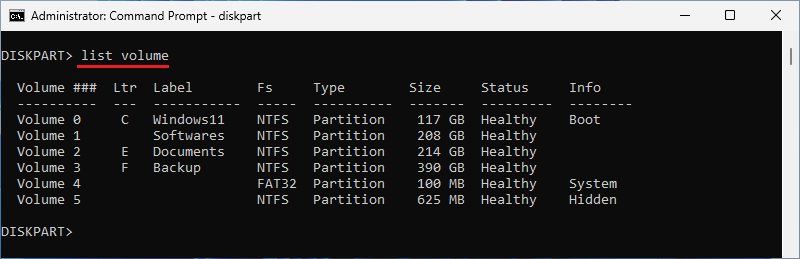

Step 4: Type list volume and hit Enter, which will list all the available partitions and disks on the computer.

type list volume

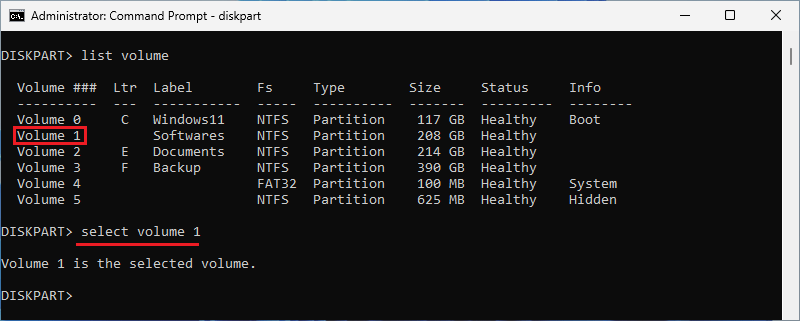

Step 5: As the list shows, the letter of Volume A is not showing. Thus, type select volume 1 and press Enter.

Note:

  • Why don't we choose Volume 4 or Volume 5? Depending on the volume size, we know that they are EFI System Partition and Recovery Partition respectively.

type select volume 1

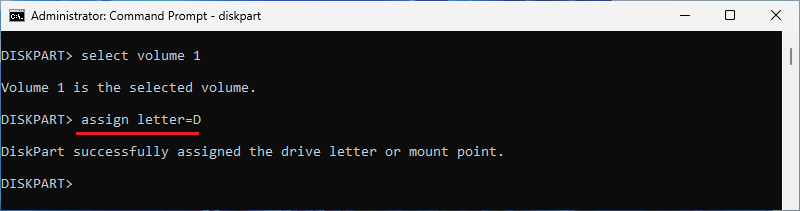

Step 6: Type assign letter=D and press Enter, which assigns the letter D to volume 1.

type assign letter=d and press enter

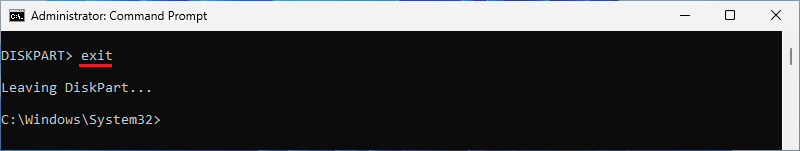

Step 7: Leave DiskPart by typing exit and pressing Enter.

type exit

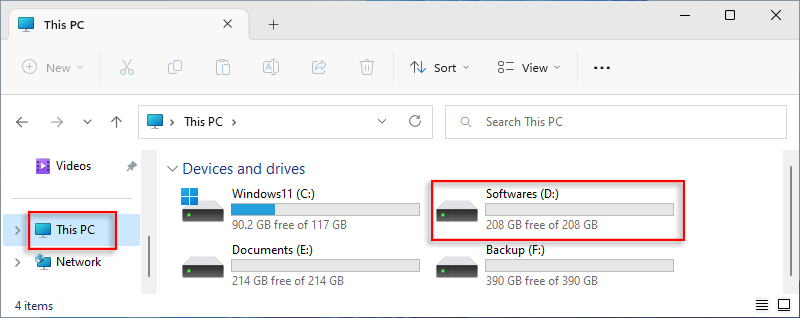

Step 8: The SSD is showing on the Windows 11.

ssd is showing
